090 Series    090 TYPE SEALED

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

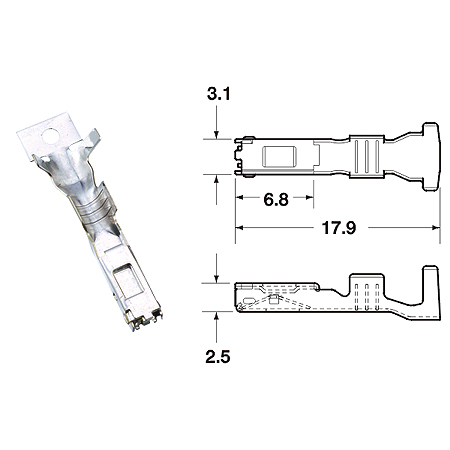

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0110 20 0.5 Brass Pre-Tin 3000 CDM-95019-S CDT-95019-S 1201A0112 16-14 1.25-2.0 Brass Pre-Tin 3000 CDM-95019-M CDT-95019-M
