090 Series    090 SMTO 91RS SERIES SEALED

SPECIFICATIONS Material Connector - Male Terninal PHOSPHOR BRONZE Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 1.25mm2 (22AWG~16AWG) Maximum Electric Current 18A

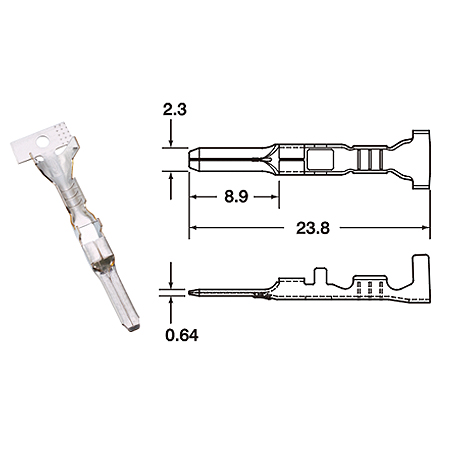

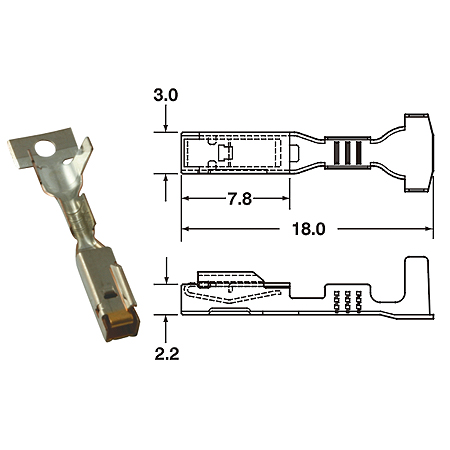

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1121A0075 22-20 0.3-0.5 Phosphor Bronze Pre-Tin 3000 CDM-95003-S CDT-95003-S 1121A0076 18-16 0.85-1.25 Phosphor Bronze Pre-Tin 3000 CDT-95003-M CDT-95003-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1210A0230 22-20 0.3-0.5 Copper Alloy None 3000 CDM-96014-S CDT-96014-S 1211A0230 22-20 0.3-0.5 Copper Alloy Pre-Tin 3000 CDM-96014-S CDT-96014-S 1213A0230 22-20 0.3-0.5 Copper Alloy Nickel-Gold 3000 CDM-96014-S CDT-96014-S 1216A0230 22-20 0.3-0.5 Copper Alloy Pre-nickel-gold 3000 CDM-96014-S CDT-96014-S
