090 Series    090 SMTO TS SERIES SEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal BRASS OR COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 1.25mm2 (22AWG~16AWG) Maximum Electric Current 18A

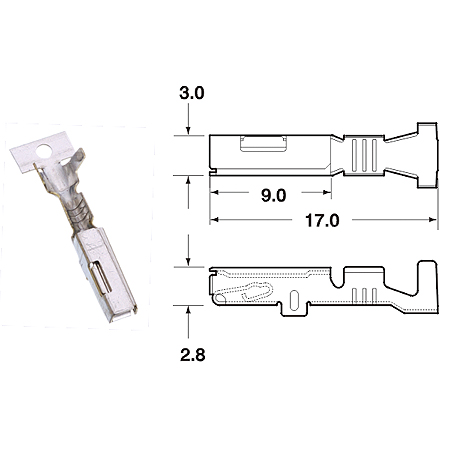

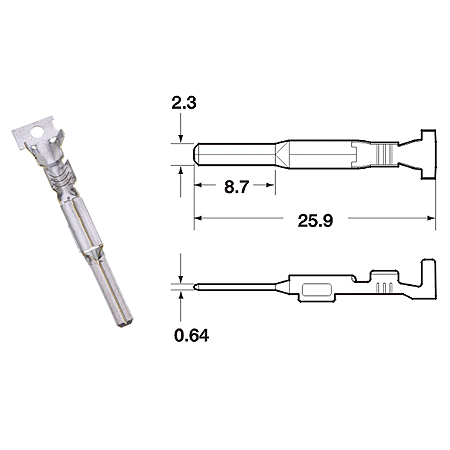

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0015 22-20 0.3-0.5 Brass Pre-Tin 4000 CDM-94121-S CDT-94121-S 1101A0016 20-16 0.5-1.25 Brass Pre-Tin 4000 CDM-94121-M CDT-94121-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0015 22-20 0.3-0.5 Brass Pre-Tin 4000 CDM-93109-S CDT-93109-S 1201A0016 18-16 0.85-1.25 Brass Pre-Tin 4000 CDM-93109-M CDT-93109-M 1211A0015 22-20 0.3-0.5 Copper Alloy Pre-Tin 4000 CDM-93109-S CDT-93109-S 1211A0016 18-16 0.85-1.25 Cooper Alloy Pre-Tin 4000 CDM-93109-M CDT-93109-M
