090 Series    090 KST B TYPE SERIES UNSEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal - Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

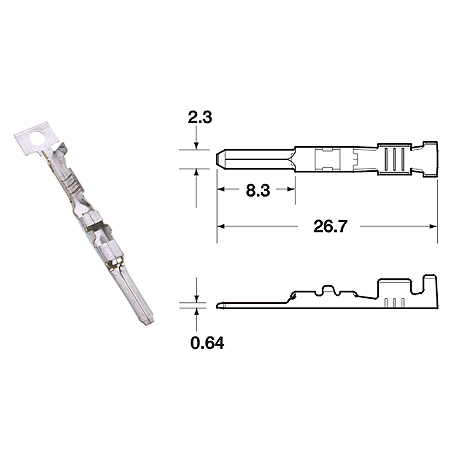

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0000 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-94116-S CDT-94116-S 1101A0001 18-16 0.85-1.25 Brass Pre-Tin 5000 CDM-94116-M CDT-94116-M 1101A0002 14 2.0 Brass Pre-Tin 5000 CDM-94116-L CDT-94116-L
