070 Series    070 RS SEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal PHOSPHOR BRONZE Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

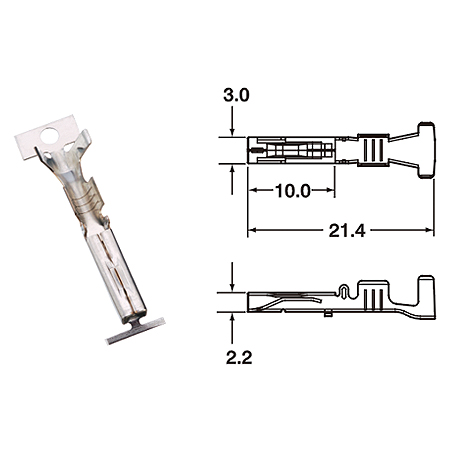

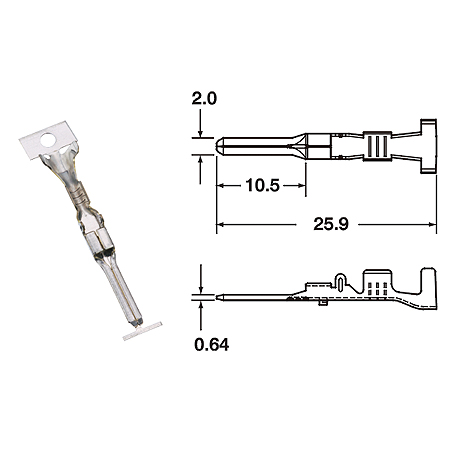

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0060 22-20 0.3-0.5 Brass Pre-Tin 4000 CDM-94110-S CDT-94110-S 1101A0062 16-14 1.25-2.0 Brass Pre-Tin 3500 CDM-94110-L CDT-94110-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1221A0157 18-14 0.85-2.0 Phosphor Bronze Pre-Tin 3000 CDM-94136-M CDT-94136-M
