060 Series    060 AM M-TIMER2 SERIES SEALED

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal COPPER ALLOY STAINLESS STEEL Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.5mm2 ~ 0.85mm2 (22AWG~18AWG) Maximum Electric Current 15A

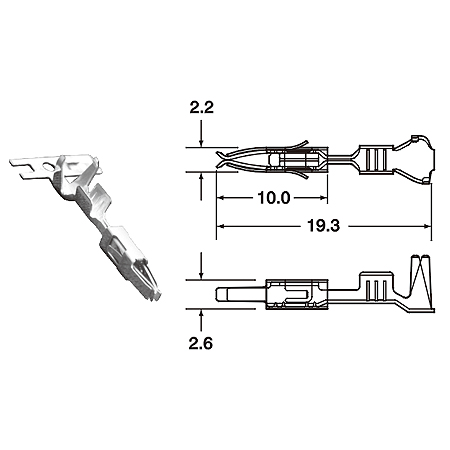

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0161 22-18 0.5-0.85 Copper Alloy Stainless Steel Pre-Tin 3500 CDM-95024-M CDT-95024-M
