060 Series    060 SMTO SL SERIES SEALED

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG） Maximum Electric Current 25A

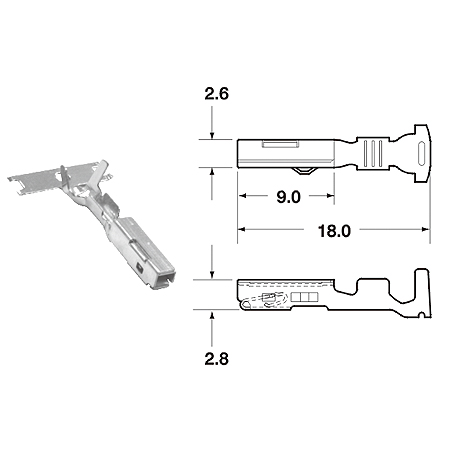

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0025 22-20 0.3-0.5 Copper Alloy Pre-Tin 4000 CDM-94105-S CDT-94105-S 1211A0026 18 0.85 Copper Alloy Pre-Tin 4000 CDM-94105-M CDT-94105-M 1211A0027 16-14 1.25-2.0 Copper Alloy Pre-Tin 4000 CDM-94105-L CDT-94105-L
