060 Series    060 YK 1.5 SERIES SEAELD

SPECIFICATIONS Material Connector - Male Terninal COPPER ALLOY Female Terninal - Operating Temperature Range -40°C ~ +125°C Voltage Drop 10mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 1.25mm2 (22AWG~16AWG) Maximum Electric Current 18A

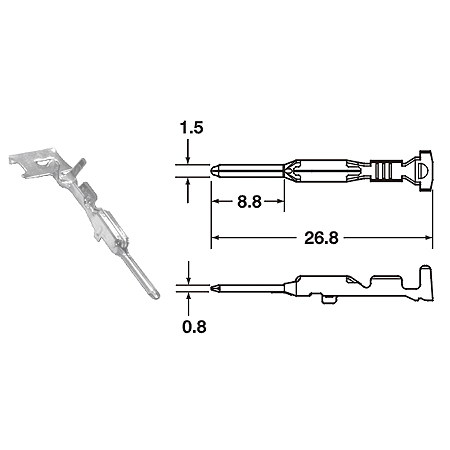

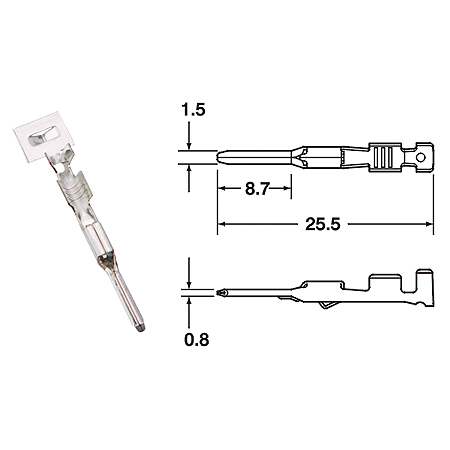

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1111A0036 18-16 0.85-1.25 Copper Alloy Pre-Tin 5000 CDM-95007-M CDT-95007-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1111A0105 22-20 0.3-0.5 Copper Alloy Pre-Tin 4000 CDM-95008-S CDT-95008-S
