Other    JSTC EL TERMINALS

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal - Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.5mm2 ~1.25mm2 (20AWG~16AWG) Maximum Electric Current 15A

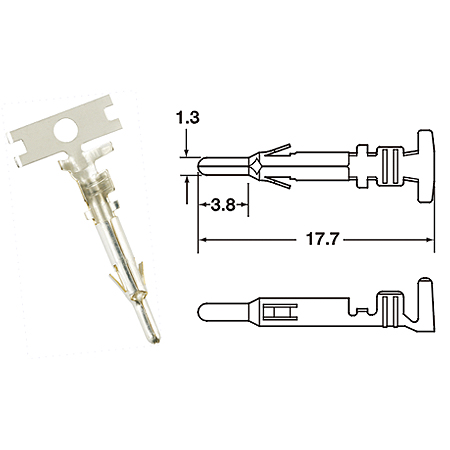

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101Z0151 20-16 0.5-1.25 Brass Pre-Tin 4000 CDM-98050-S CDT-98050-S
