SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal - Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 1.0mm2 ~ 2.0mm2 (16AWG~14AWG) Maximum Electric Current 25A

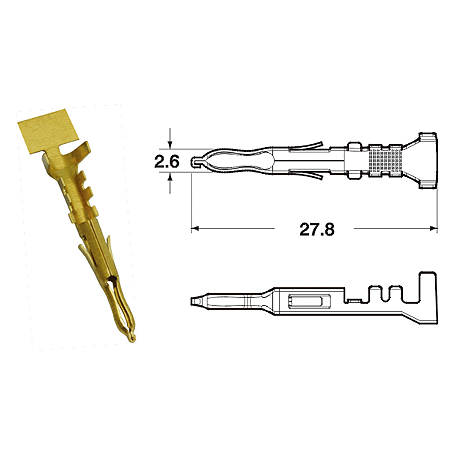

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0236 16-14 1.0-2.0 Brass Pre-Tin 2000 CDM-97001-M CDT-97001-M
