  Other    BATTERY SERIES


SPECIFICATIONS
Material Connector -
Female Terninal BRASS
Operating Temperature Range -40°C ~ +120°C
Voltage Drop 5mV/A
Isolation Resistance -
Dielectric Resistance -
Applicable Wire Size -
Maximum Electric Current 78A

TERMINAL
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

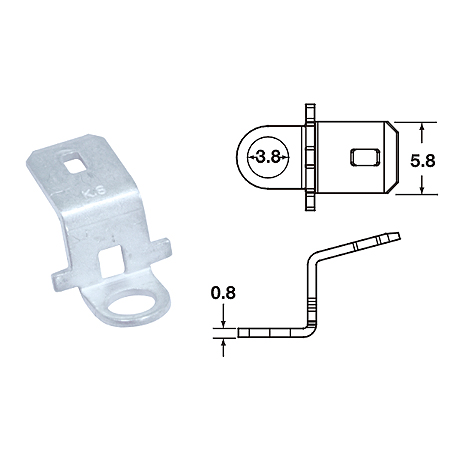

1000A0021L - 13/19 Brass None 100 CDM-98033 CDT-98033
1005A0021L - 13/19 Brass None 100 CDM-98033 CDT-98033
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

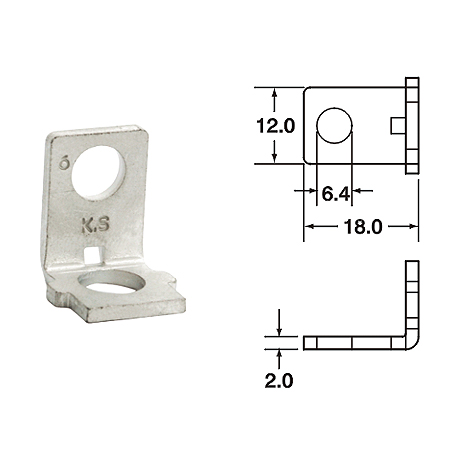

1000A0026L - 13/19 Brass None 100 CDM-98034 CDT-98034
1005A0026L - 13/19 Brass Tin 100 CDM-98034 CDT-98034
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

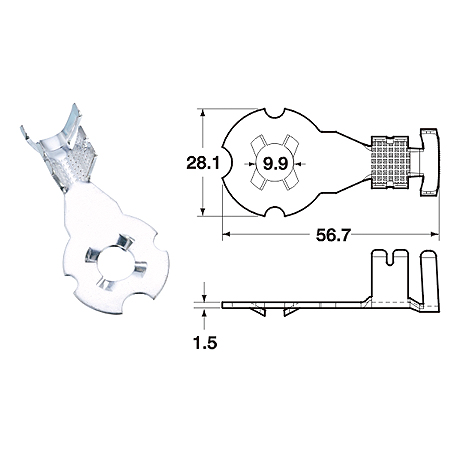

1000A0032L - 32 Brass Tin 100 CDM-98035 CDT-98035
1005A0032L - 32 Brass Tin 100 CDM-98035 CDT-98035
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

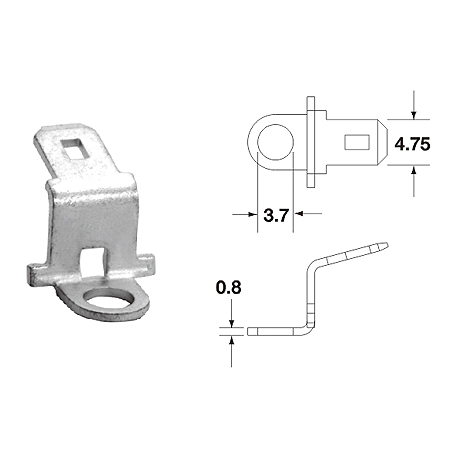

1000A0036L - 13/19 Brass None 100 CDM-98036 CDT-98036
1005A0036L - 13/19 Brass Tin 100 CDM-98036 CDT-98036
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

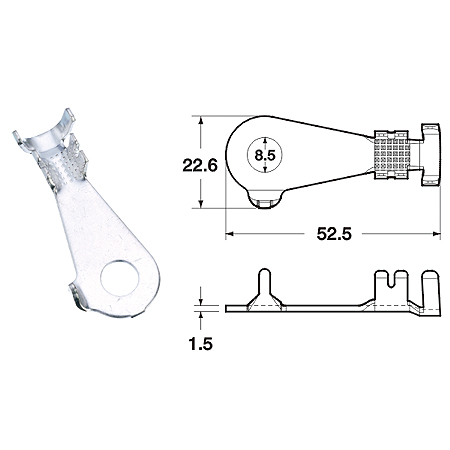

1000A0037L - 32 Brass None 100 CDM-98037 CDT-98037
1005A0037L - 32 Brass Tin 100 CDM-98037 CDT-98037
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

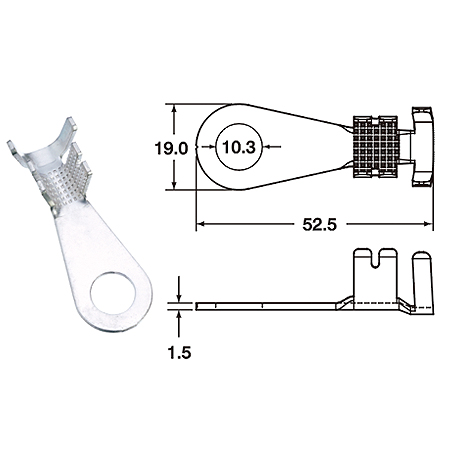

1000A0041L - 13/19 Brass None 100 CDM-98038 CDT-98038
1005A0041L - 13/19 Brass Tin 100 CDM-98038 CDT-98038
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

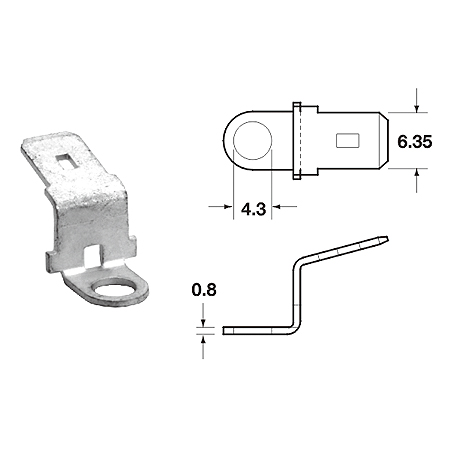

1000A0042L - 32 Brass None 100 CDM-98039 CDT-98039
1005A0042L - 32 Brass Tin 100 CDM-98039 CDT-98039
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2

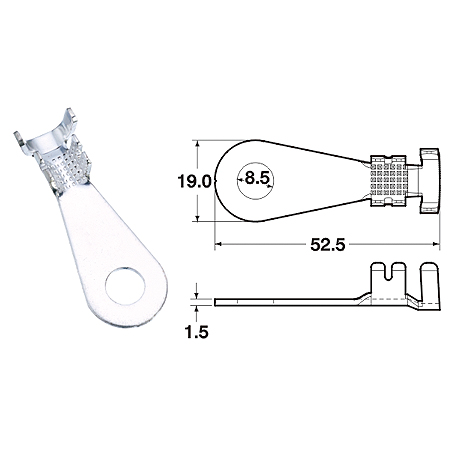

1000A0049L - - Brass None 100 CDM-98040 CDT-98040
1005A0049L - - Brass Tin 100 CDM-98040 CDT-98040
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0054L - - Brass None 100 - -
1005A0054L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0059L - - Brass None 100 - -
1005A0059L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0064L - - Brass None 100 - -
1005A0064L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0069L - - Brass None 100 - -
1005A0069L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0074L - - Brass None 100 - -
1005A0074L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0079L - - Brass None 100 - -
1005A0079L - - Brass Tin 100 - -
ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES
A.W.G. mm2
1000A0084L - - Brass None 100 - -
1005A0084L - - Brass Tin 100 - -


Barrel Types


Terminals Type


Wire Range


Stud Size
