Other    SQUARE TERMINALS

SPECIFICATIONS Material Connector - Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~1.4mm2 (22AWG~16AWG) Maximum Electric Current 18A

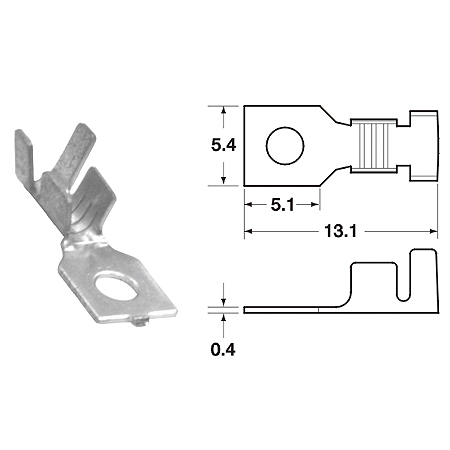

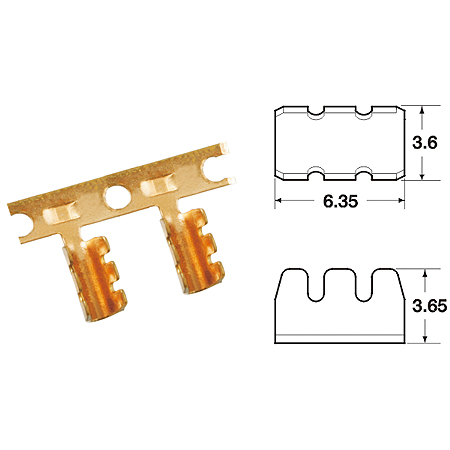

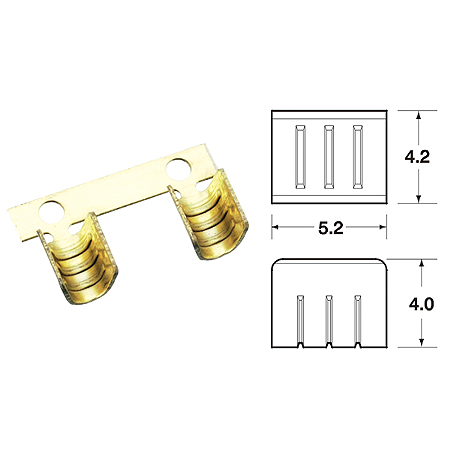

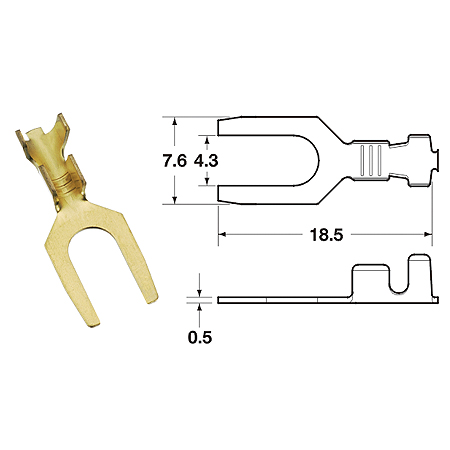

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 NM000-01B9 22-18 0.3-0.8 Brass None 10000 CDM-98020-M CDT-98020-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 SM040-01B2 22-16 0.3-1.4 Brass Tin 5000 CDM-93044-M CDT-93044-M SM040-01B9 22-16 0.3-1.4 Brass None 5000 CDM-93044-M CDT-93044-M SM040-01BT 22-16 0.3-1.4 Brass Pre-Tin 5000 CDM-93044-M CDT-93044-M UL/CUL ALL LISTED ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 LM000-01B9 18-16 0.8-1.4 Brass None 4500 CDM-98021-M CDT-98021-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 LM000-04K9 18-16 0.85-1.25 Brass None 5000 CDM-9802-M CDT-9802-M
