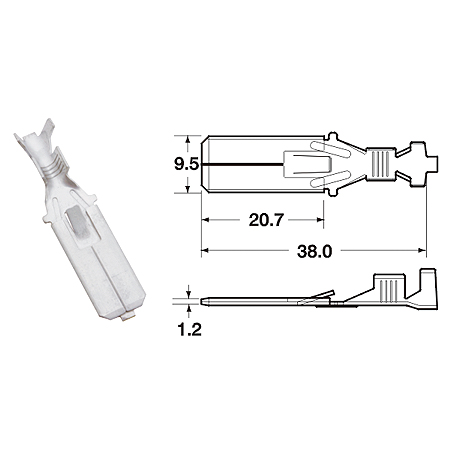

375 Series    375 SERIES

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal - Operating Temperature Range -30°C ~ +130°C Voltage Drop 10mV/A Isolation Resistance 100MΩ Dielectric Resistance 1800V Applicable Wire Size 3.0mm2 ~ 6.0mm2 (12AWG~10AWG) Maximum Electric Current 40A

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1100A0603 12-10 3.0 Brass None 2000 CDM-96028-L CDT-96028-L 1100A0604 12-10 6.0 Brass None 2000 CDM-96028-J CDT-96028-J 1105A0603 12-10 3.0 Brass Tin 1500 CDM-96028-L CDT-96028-L 1105A0604 12-10 6.0 Brass Tin 1500 CDM-96028-J CDT-96028-J
