312 Series    312 SERIES

SPECIFICATIONS Material Connector -- Male Terninal -- Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.85mm2 ~ 6.0mm2 (18AWG~10AWG) Maximum Electric Current 40A

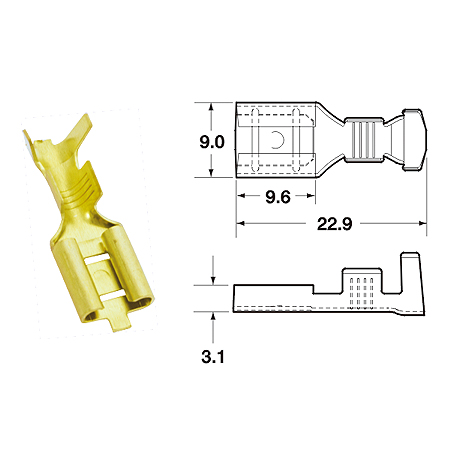

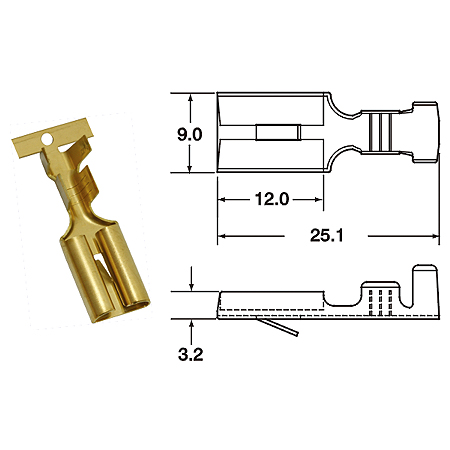

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1200A0281 18-16 0.85-1.25 Brass None 1000 CDM-97010-M CDT-97010-M 1200A0283 12-10 3.0-5.0 Brass None 1000 CDM-97010-L CDT-97010-L 1201A0281 18-16 0.85-1.25 Brass Pre-Tin 1000 CDM-97010-M CDT-97010-M 1201A0283 12-10 3.0-5.0 Brass Pre-Tin 1000 CDM-97010-L CDT-97010-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FJ312-01B28 14-10 2.0-6.0 Brass Tin 4000 CDM-96020-J CDT-96020-J FJ312-01B98 14-10 2.0-6.0 Brass None 3000 CDM-96020-J CDT-96020-J
