250 Series
250 SERIES TERMINALS
SPECIFICATIONS
|
Material |
Connector |
- |
| Male Terninal |
BRASS |
| Female Terninal |
BRASS OR COPPER ALLOY |
| Operating Temperature Range |
-40°C ~ +120°C |
| Voltage Drop |
3mV/A |
| Isolation Resistance |
- |
| Dielectric Resistance |
- |
| Applicable Wire Size |
0.3mm2 ~ 3.0mm2 (22AWG~12AWG） |
| Maximum Electric Current |
30A |
|
|
TERMINAL
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

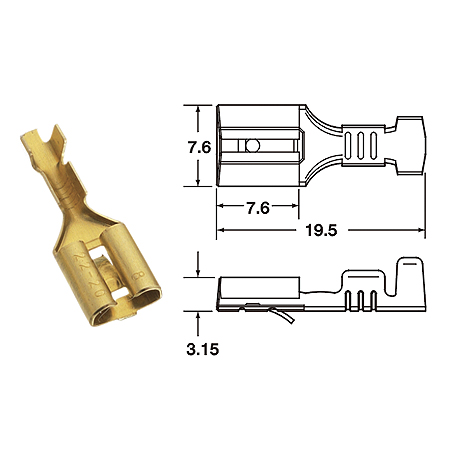

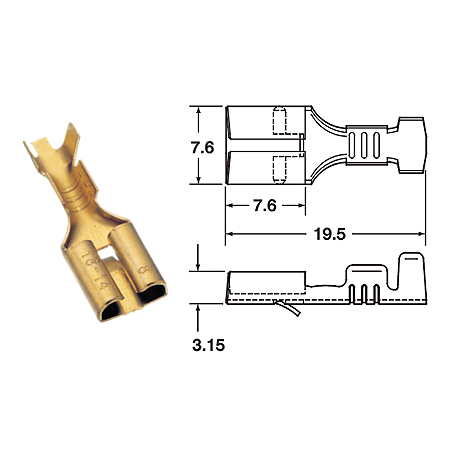

| FJ250-07B98 |
14-12 |
2.0-3.0 |
Brass |
None |
2500 |
CDM-93051-J |
CDT-93051-J |
| FL250-07B98 |
18-14 |
0.8-2.0 |
Brass |
None |
2500 |
CDM-93048-L |
CDT-93048-L |
| FM250-07B98 |
22-18 |
0.3-0.8 |
Brass |
None |
2500 |
CDM-93050-M |
CDT-93050-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

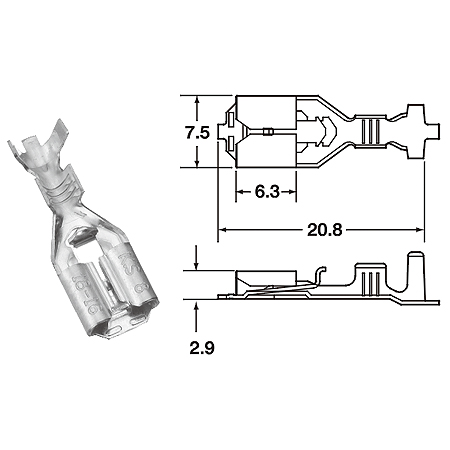

| FJ250-08B98 |
14-12 |
2.0-3.0 |
Brass |
None |
4000 |
CDM-94004-J |
CDT-94004-J |
| FL250-08B98 |
18-14 |
0.8-2.0 |
Brass |
None |
5000 |
CDM-94003-L |
CDT-94003-L |
| FM250-08B98 |
22-20 |
0.3-0.5 |
Brass |
None |
5000 |
CDM-94002-M |
CDT-94002-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

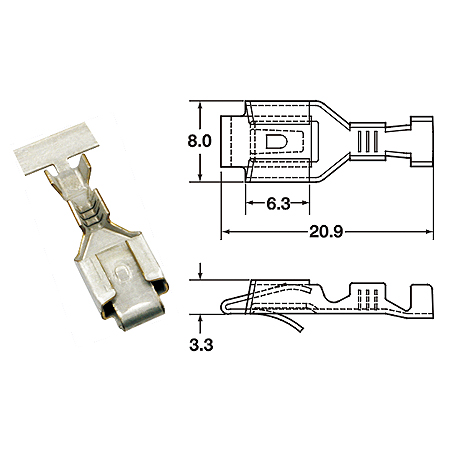

| FJ250-09B98 |
14-12 |
2.0-3.0 |
Brass |
None |
5000 |
CDM-94008-J |
CDT-94008-J |
| FL250-09B98 |
18-14 |
0.8-2.0 |
Brass |
None |
5000 |
CDM-94009-L |
CDT-94009-L |
| FM250-09B98 |
22-20 |
0.3-0.5 |
Brass |
None |
5000 |
CDM-94010-M |
CDT-94010-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

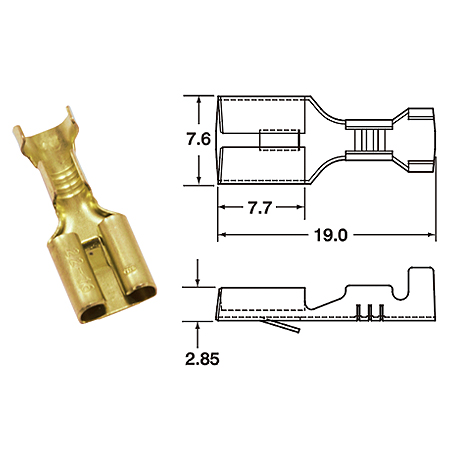

| FL250-10BT8 |
18-14 |
0.8-2.0 |
Brass |
Pre-Tin |
4000 |
CDM-95016-L |
CDT-95016-L |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

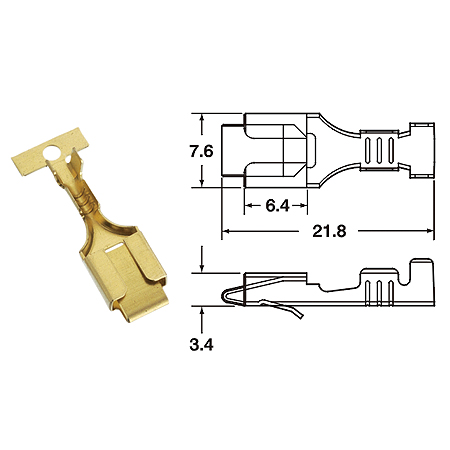

| FM250-11BT8 |
20-18 |
0.5-0.8 |
Brass |
Pre-Tin |
2000 |
CDM-98012-M |
CDT-98012-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

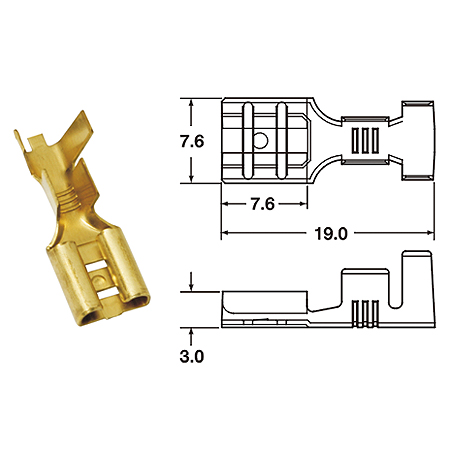

| FM250-12B98 |
22-16 |
0.3-1.4 |
Brass |
None |
5000 |
CDM-98013-M |
CDT-98013-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

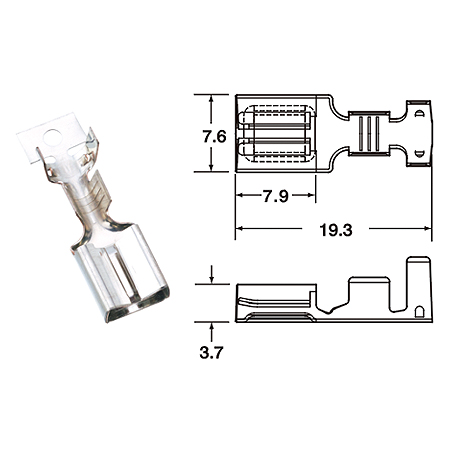

| FL250-13B28 |
16-12 |
1.5-3.0 |
Brass |
Tin |
5000 |
CDM-98014-L |
CDT-98014-L |
| FL250-13B98 |
16-12 |
1.5-3.0 |
Brass |
None |
5000 |
CDM-98014-L |
CDT-98014-L |
| FL250-13BT8 |
16-12 |
1.5-3.0 |
Brass |
Pre-Tin |
5000 |
CDM-98014-L |
CDT-98014-L |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1211A0147 |
14-12 |
2.0-3.0 |
Copper Alloy |
Pre-Tin |
1500 |
CDM-95011-L |
CDT-95011-L |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

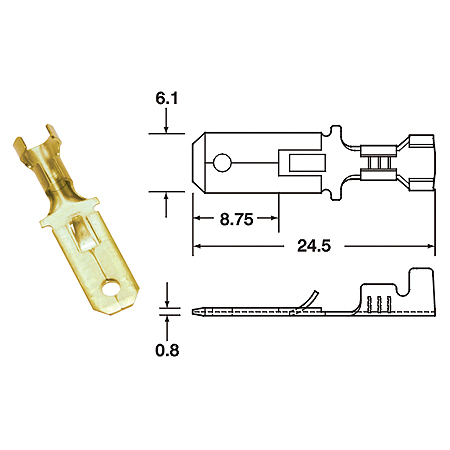

| MM250-04B9 |
16-14 |
1.4-2.0 |
Brass |
None |
5000 |
CDM-98015-M |
CDT-98015-M |
|
|
|
|
|
