205 Series    205 SERIES

SPECIFICATIONS Material Connector -- Male Terninal -- Female Terninal COPPER ALLOY OR BRASS Operating Temperature Range -30°C ~ +150°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 6.0mm2 (22AWG~10AWG) Maximum Electric Current 40A

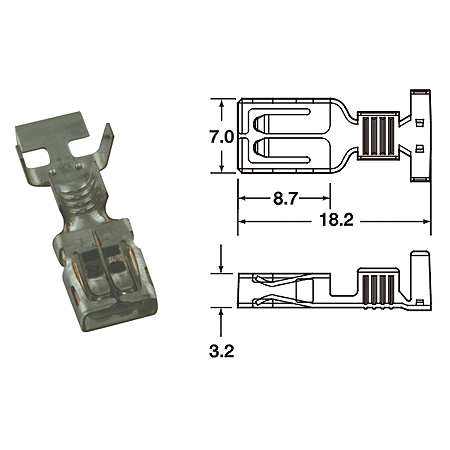

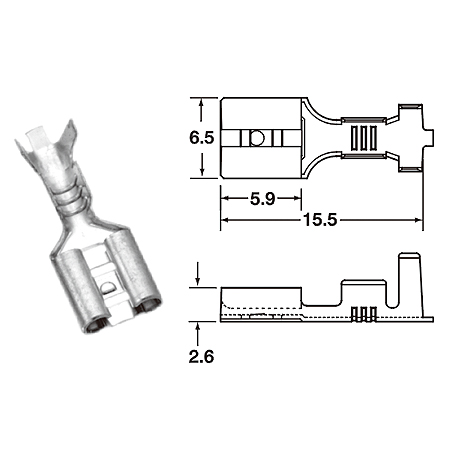

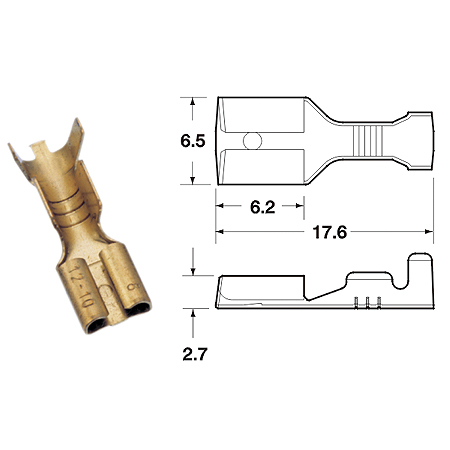

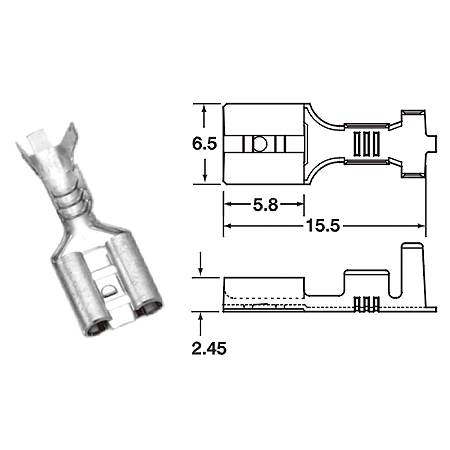

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0211 20-16 0.5-1.25 Copper Alloy Pre-Tin 2000 CDM-95033-M CDT-95033-M 1211A0212 20-14 0.5-2.0 Copper Alloy Pre-Tin 2000 CDM-95033-L CDT-95033-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM205-01B27 22-16 0.3-1.4 Brass Tin 7500 CDM-93018-M CDT-93018-M FM205-01B97 22-16 0.3-1.4 Brass None 7500 CDM-93018-M CDT-93018-M FM205-01BT7 22-16 0.3-1.4 Brass Pre-Tin 7500 CDM-93018-M CDT-93018-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM205-02B25 22-16 0.3-1.4 Brass Tin 7500 CDM-93018-M CDT-93018-M FM205-02B95 22-16 0.3-1.4 Brass None 7500 CDM-93018-M CDT-93018-M FM205-02BT5 22-16 0.3-1.4 Brass Pre-Tin 7500 CDM-93018-M CDT-93018-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FJ205-03B28 12-10 3.0-6.0 Brass Tin 5000 CDM-93041-J CDT-93041-J FJ205-03B98 12-10 3.0-6.0 Brass None 5000 CDM-93041-J CDT-93041-J FJ205-03BT8 12-10 3.0-6.0 Brass Pre-Tin 5000 CDM-93041-J CDT-93041-J FJ205-04B26 12-10 3.0-6.0 Brass Tin 5000 CDM-98009-J CDT-98009-J FJ205-04B96 12-10 3.0-6.0 Brass None 5000 CDM-98009-J CDT-98009-J FJ205-04BT6 12-10 3.0-6.0 Brass Pre-Tin 5000 CDM-98009-J CDT-98009-J FL205-03B28 18-14 0.8-2.0 Brass Tin 5000 CDM-93042-L CDT-93042-L FL205-03B98 18-14 0.8-2.0 Brass None 5000 CDM-93042-L CDT-93042-L FL205-03BT8 18-14 0.8-2.0 Brass Pre-Tin 5000 CDM-93042-L CDT-93042-L FL205-04B26 18-14 0.8-2.0 Brass Tin 5000 CDM-98008-L CDT-98008-L FL205-04B96 18-14 0.8-2.0 Brass None 5000 CDM-98008-L CDT-98008-L FL205-04BT6 18-14 0.8-2.0 Brass Pre-Tin 5000 CDM-98008-L CDT-98008-L UL/CUL ALL LISTED
