187 Series    187 SERIES

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 3.0mm2 (22AWG~12AWG) Maximum Electric Current 30A

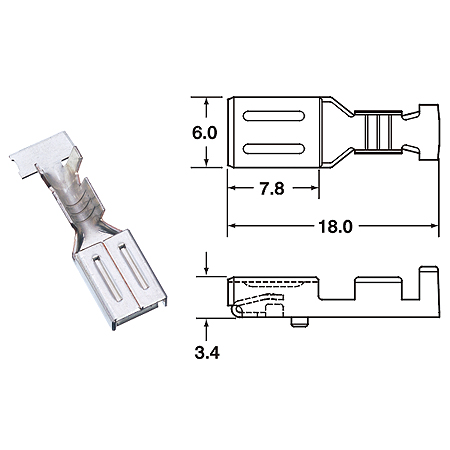

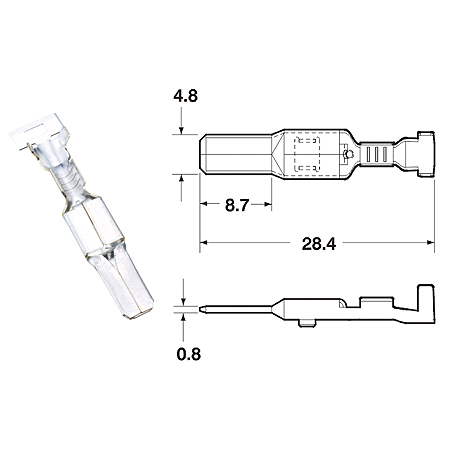

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0065 22-20 0.3-0.5 Brass Pre-Tin 3000 CDM-95004-S CDT-95004-S 1101A0066 20-16 0.5-1.25 Brass Pre-Tin 3000 CDM-95004-M CDT-95004-M 1101A0067 14-12 2.0-3.0 Brass Pre-Tin 2500 CDM-95004-L CDT-95004-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0115 22-20 0.3-0.5 Copper Alloy Pre-Tin 3000 CDM-94133-S CDT-94133-S 1211A0116 20-16 0.5-1.25 Copper Alloy Pre-Tin 2500 CDM-94133-M CDT-94133-M 1211A0117 14-12 2.0-3.0 Copper Alloy Pre-Tin 2000 CDM-94133-L CDT-94133-L
