118 Series    118 SERIES

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.2mm2 ~ 2.0mm2 (24AWG~14AWG) Maximum Electric Current 25A

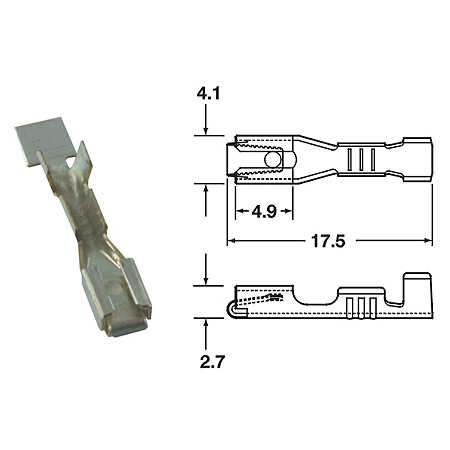

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0175 24-20 0.2-0.5 Brass Pre-Tin 4000 CDM-95020-S CDT-95020-S 1201A0177 18-14 0.85-2.0 Brass Pre-Tin 3000 CDM-95020-L CDT-95020-L
