家電連接器


  家電連接器


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 222018161412
AMP. 91217183035




Product List (Total: 20 records)
Data Source Page NO.：

WIRE
RANGE
A.W.G.

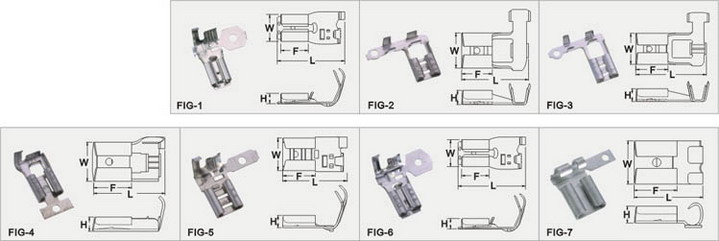

mm2		 ITEM NO. NEMA TAB DIMENSION (mm) FIG MATERIAL PLATINGS Q'TY
BOX
W F L H T
22-16
A.W.G.

0.3-1.4
mm2
GM187-01BT5
 .187x.020
(4.75x0.5)		 5.6
0 		6.3
0 		15.7
0 		2.2
0 		.3
0 		1
Brass
 Pre-Tin 5000
GM250-07B28
 .250x.032
(6.35x0.8) 		7.7
0 		7.6
0 		12.2
0 		3
0 		.4
0 		7
Brass
 Tin 2500
GM250-07B98
 .250x.032
(6.35x0.8) 		7.7
0 		7.6
0 		12.2
0 		3
0 		.4
0 		7
Brass
 None 2500
GM250-07BT8
 .250x.032
(6.35x0.8) 		7.7
0 		7.6
0 		12.2
0 		3
0 		.4
0 		7
Brass
 Pre-Tin 2500
22-16
A.W.G.

0.5-1.4
mm2
GM250-01B28
 .250x.032
(6.35x0.8) 		7.7
0 		6.7
0 		14.2
0 		3.2
0 		.4
0 		2
Brass
 Tin 2500
GM250-01B98
 .250x.032
(6.35x0.8) 		7.7
0 		6.7
0 		14.2
0 		3.2
0 		.4
0 		2
Brass
 None 2500
GM250-01BT8
 .250x.032
(6.35x0.8) 		7.7
0 		6.7
0 		14.2
0 		3.2
0 		.4
0 		2
Brass
 Pre-Tin 2500
20-14
A.W.G.

0.5-2.0
mm2
GL250-02B28
.250x.032
(6.35x0.8) 		7.7
0 		7.9
0 		16.8
0 		3.2
0 		.4
0 		3
Brass
 Tin 2500
GL250-02B98
.250x.032
(6.35x0.8) 		7.7
0 		7.9
0 		16.8
0 		3.2
0 		.4
0 		3
Brass
 None 2500
GL250-02BT8
 .250x.032
(6.35x0.8) 		7.7
0 		7.9
0 		16.8
0 		3.2
0 		.4
0 		3
Brass
 Pre-Tin 2500
GL250-04B26
.250x.025
(6.35x0.65)		 7.7
0 		7.7
0 		15
0 		2.8
0 		.45
0 		4
Brass
 Tin 1500
GL250-04B96
.250x.025
(6.35x0.65)		 7.7
0 		7.7
0 		15
0 		2.8
0 		.45
0 		4
Brass
 None 1500
GL250-04BT6
 .250x.025
(6.35x0.65)		 7.7
0 		7.7
0 		15
0 		2.8
0 		.45
0 		4
Brass
 Pre-Tin 1500
22-18
A.W.G.

0.3-0.8
mm2
GM250-03B28
 .250x.032
(6.35x0.8) 		7.7
0 		7.7
0 		14.3
0 		2.8
0 		.45
0 		4
Brass
 Tin 1500
GM250-03B98
 .250x.032
(6.35x0.8) 		7.7
0 		7.7
0 		14.3
0 		2.8
0 		.45
0 		4
Brass
 None 1500
GM250-03BT8
 .250x.032
(6.35x0.8) 		7.7
0 		7.7
0 		14.3
0 		2.8
0 		.45
0 		4
Brass
 Pre-Tin 1500
18-12
A.W.G.

0.8-3.0
mm2
GJ250-05B28
 .250x.032
(6.35x0.8) 		8
0 		8
0 		15.8
0 		3
0 		.5
0 		5
Brass
 Tin 1500
GJ250-05B98
 .250x.032
(6.35x0.8) 		8
0 		8
0 		15.8
0 		3
0 		.5
0 		5
Brass
 None 1500
GJ250-05BT8
 .250x.032
(6.35x0.8) 		8
0 		8
0 		15.8
0 		3
0 		.5
0 		5
Brass
 Pre-Tin 1500
GJ250-06BT8
.250x.032
(6.35x0.8) 		7.6
0 		7.8
0 		18
0 		2.9
0 		.4
0 		6
Brass
 Pre-Tin 1500
