家電連接器


  家電連接器


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 2220181614
AMP. 912171830




Product List (Total: 17 records)
Data Source Page NO.：

WIRE
RANGE
A.W.G.

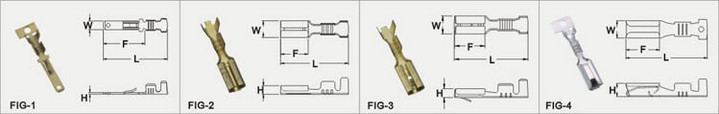

mm2		 ITEM NO. NEMA TAB DIMENSION (mm) FIG MATERIAL PLATINGS Q'TY
BOX
W F L H T
20-16
A.W.G.

0.5-1.4
mm2
MM110-01B9
 .110 x .020
(2.8 x0.5)		 2.8
0 		13.8
0 		20.8
0 		.5
0 		.5
0 		1
Brass
 None 10000
MM110-01B2
.110 x .020
(2.8 x0.5)		 2.8
0 		13.8
0 		20.8
0 		.5
0 		.5
0 		1
Brass
 Tin 10000
22-18
A.W.G.

0.3-0.8
mm2
FM110-01B28
 .110 x .032
(2.8 x 0.8) 		3.8
0 		6.3
0 		15.5
0 		1.9
0 		.25
0 		2
Brass
 Tin 10000
FM110-01B98
.110 x .032
(2.8 x 0.8) 		3.8
0 		6.3
0 		15.5
0 		1.9
0 		.25
0 		2
Brass
 None 10000
FM110-01BT8
.110 x .032
(2.8 x 0.8) 		3.8
0 		6.3
0 		15.5
0 		1.9
0 		.25
0 		2
Brass
 Pre-Tin 10000
FM110-02B25
.110x.020
(2.8 x 0.5)		 3.8
0 		6.3
0 		15.5
0 		1.85
0 		.25
0 		2
Brass
 Tin 10000
FM110-02B95
.110x.020
(2.8 x 0.5)		 3.8
0 		6.3
0 		15.5
0 		1.85
0 		.25
0 		2
Brass
 None 10000
FM110-02BT5
.110x.020
(2.8 x 0.5)		 3.8
0 		6.3
0 		15.5
0 		1.85
0 		.25
0 		2
Brass
 Pre-Tin 10000
22-16
A.W.G.

0.3-1.4
mm2
FM110-03B25
.110x.020
(2.8 x 0.5)		 3.8
0 		6.5
0 		15.6
0 		1.85
0 		.25
0 		3
Brass
 Tin 10000
FM110-03B95
.110x.020
(2.8 x 0.5)		 3.8
0 		6.5
0 		15.6
0 		1.85
0 		.25
0 		3
Brass
 None 10000
FM110-03BT5
.110x.020
(2.8 x 0.5)		 3.8
0 		6.5
0 		15.6
0 		1.85
0 		.25
0 		3
Brass
 Pre-Tin 10000
FM110-04B28
.110 x .0320
(2.8 x 0.8) 		3.8
0 		6.5
0 		15.6
0 		1.9
0 		.25
0 		3
Brass
 Tin 10000
FM110-04B98
 .110 x .0320
(2.8 x 0.8) 		3.8
0 		6.5
0 		15.6
0 		1.9
0 		.25
0 		3
Brass
 None 10000
FM110-04BT8
 .110 x .0320
(2.8 x 0.8) 		3.8
0 		6.5
0 		15.6
0 		1.9
0 		.25
0 		3
Brass
 Pre-Tin 10000
22-20
A.W.G.

0.3-0.5
mm2
FS110-05BT5
 110 x .020
(2.8 x 0.5) 8) 		4
0 		7.8
0 		18.9
0 		3.1
0 		.25
0 		4
Brass
 Pre-Tin 5000
18-16
A.W.G.

0.8-1.4
mm2
FM110-05BT5
 110 x .020
(2.8 x 0.5) 8) 		4
0 		7.8
0 		18.9
0 		3.1
0 		.25
0 		4
Brass
 Pre-Tin 5000
14
A.W.G.

2.0
mm2
FL110-05BT5
 110 x .020
(2.8 x 0.5) 8) 		4
0 		7.8
0 		18.9
0 		3.1
0 		.25
0 		4
Brass
 Pre-Tin 5000
