CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 1614222018161210
AMP. 101591217183550

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
TERMINAL MATERIAL: COPPER

Product List (Total: 43 records)
Data Source Page NO.：P.385-69,  P.385-70,  P.385-71,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
REEL
BRAZED
SEAM		 BUTTED

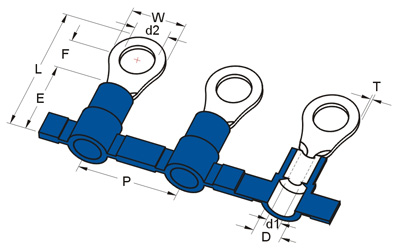

SEAM		 2 x d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
RNYB1-2.5-PS
RNY1-2.5-PS
 #2 .094
2.4		 .217
5.5 		.189
4.8 		.724
18.4 		.433
11 		.157
4.0 		.067
1.7 		.03
.75
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF011
 2500
RNYB1-3.2-PS
RNY1-3.2-PS
 #4 .126
3.2		 .217
5.5 		.197
5 		.728
18.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBS1-3.7-PS
RNYS1-3.7-PS
 #6 .146
3.7		 .217
5.5 		.197
5 		.728
18.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBM1-3.7-PS
RNYM1-3.7-PS
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.803
20.4 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBL1-3.7-PS
RNYL1-3.7-PS
 #6 .146
3.7		 .315
8 		.276
7 		.858
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBS1-4-PS
RNYS1-4-PS
 #8 .169
4.3		 .169
4.3 		.248
6.3 		.803
20.4 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBL1-4-PS
RNYL1-4-PS
 #8 .169
4.3		 .315
8 		.276
7 		.858
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYB1-5-PS
RNY1-5-PS
 #10 .209
5.3		 .315
8 		.276
7 		.856
21.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYBL1-5-PS
RNYL1-5-PS
 #10 .209
5.3		 .457
11.6 		.433
11 		1.094
27.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYB1-6-PS
RNY1-6-PS
 1/4 .252
6.4		 .457
11.6 		.433
11 		1.094
27.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYB1-7-PS
RNY1-7-PS
 9/32 .291
7.4		 .457
11.6 		.433
11 		1.094
27.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYB1-8-PS
RNY1-8-PS
 5/16 .331
8.4		 .457
11.6 		.433
11 		1.094
27.8 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
RNYB1-10-PS
RNY1-10-PS
 3/8 .413
10.5		 .535
13.6 		.547
13.9 		1.24
31.5 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		2500
