MAXIMUM ELECTRIC CURRENT:

A.W.G.	22	20	18	16	14
AMP.	3	4	7	10	15

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED

16-14A.W.G.: BLUE

DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS

Product List (Total: 2 records)

Data Source Page NO.：P.385-45,

WIRE
RANGE
A.W.G.
mm²

ITEM NO.

NEMA TAB

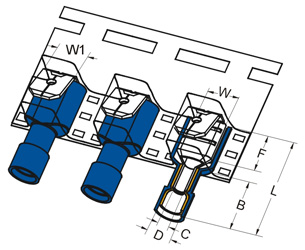

DIMENSION inch(mm)

CRIMPING
TOOL

Q'TY
BOX

W

W1

F

F1

L

B

D

T

22-16
A.W.G.

0.5-1.5
mm²

PBDFNYD1-250-T

.032X.250
(0.8X6.35)

.26
6.6

.25
6.35

.315
8

.323
8.2

.846
21.5

.433
11

.157
4.0

.016
.4

K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011

1000

16-14
A.W.G.

1.5-2.5
mm²

PBDFNYD2-250-T

.032X.250
(0.8X6.35)

.26
6.6

.25
6.35

.315
8

.323
8.2

.846
21.5

.433
11

.177
4.5

.016
.4

K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012

1000

Data Source Page NO.：P.385-45,
