CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS





MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 75°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS



Product List (Total: 16 records)
Data Source Page NO.:P.385-38,

WIRE
RANGE
A.W.G.
mm2
ITEM NO. NEMA TAB DIMENSION inch(mm) CRIMPING
TOOL
Q'TY
BOX

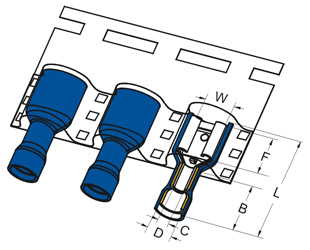

W F L B D T
22-16
A.W.G.

0.5-1.5
mm2

FDFD1-110(5)-T
.020X.110
(0.5X2.8)
.126
3.2
.256
6.5
.748
19
.413
10.5
.150
3.8
.012
.3
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
1000
FDFD1-110(8)-T
.032X.110
(0.8X2.8)
.126
3.2
.256
6.5
.748
19
.413
10.5
.150
3.8
.14
.35
1000
FDFD1-187(5)-T
.020X.187
(0.5X4.75)
.197
5
.252
6.4
.807
20.5
.413
10.5
.150
3.8
.014
.35
1000
FDFD1-187(8)-T
.032X.187
(0.8X4.75)
.197
5
.252
6.4
.807
20.5
.413
10.5
.150
3.8
.014
.35
1000
FDFD1-205(5)-T
.020X.205
(0.5X5.2)
.224
5.7
.228
5.8
.795
20.2
.413
10.5
.150
3.8
.014
.35
1000
FDFD1-205(8)-T
.032X.205
(0.8X5.2)
.224
5.7
.228
5.8
.795
20.2
.413
10.5
.150
3.8
.014
.35
1000
FDFD1-250-T
.032X.250
(0.8X6.35)
.26
6.6
.295
7.5
.858
21.8
.413
10.5
.150
3.8
.016
.4
1000
16-14
A.W.G.

1.5-2.5
mm2

FDFD2-110(5)-T
.020X.110
(0.5X2.8)
.126
3.2
.256
6.5
.748
19
.413
10.5
.185
4.7
.012
.3
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
1000
FDFD2-110(8)-T
.032X.110
(0.8X2.8)
.126
3.2
.256
6.5
.748
19
.413
10.5
.185
4.7
.012
.3
1000
FDFD2-187(5)-T
.020X.187
(0.5X4.75)
.197
5
.252
6.4
.795
20.2
.413
10.5
.185
4.7
.14
.35
1000
FDFD2-187(8)-T
.032X.187
(0.8X4.75)
.197
5
.252
6.4
.795
20.2
.413
10.5
.185
4.7
.014
.35
1000
FDFD2-205(5)-T
.020X.205
(0.5X5.2)
.224
5.7
.228
5.8
.795
20.2
.413
10.5
.185
4.7
.014
.35
1000
FDFD2-205(8)-T
.032X.205
(0.8X5.2)
.224
5.7
.228
5.8
.795
20.2
.413
10.5
.185
4.7
.014
.35
1000
FDFD2-250-T
.032X.250
(0.8X6.35)
.26
6.6
.295
7.5
.874
22.2
.413
10.5
.185
4.7
.016
.4
1000
12-10
A.W.G.

4-6
mm2

FDFD5-250-T
.032X.250
(0.8X6.35)
.26
6.6
.295
7.5
.953
24.2
.492
12.5
.244
6.2
.016
.4
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF015
500
FDFD5-375-T
.047X.370
(1.2X9.4)
.394
10
.472
12
1.201
30.5
.492
12.5
.244
6.2
.02
.5
500

Data Source Page NO.:P.385-38,
