CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 75°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS

Product List (Total: 6 records)
Data Source Page NO.：P.385-37,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX

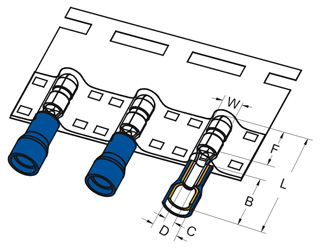

W F L B D T
22-16
A.W.G.

0.5-1.5
mm2
MPD1-156-T
 .157
4 		.335
8.5 		.846
21.5 		.413
10.5 		.150
3.8 		.016
.4
K.S.MODEL 34
OR
K.S.MODEL
KST2000A
WITH DIE INDEX
COLOR:RED
 1000
MPDL1-156-T
 .157
4 		.413
10.5 		.925
23.5 		.413
10.5 		.150
3.8 		.016
.4 		1000
16-14
A.W.G.

1.5-2.5
mm2
MPD2-156-T
 .157
4 		.335
8.5 		.854
21.7 		.413
10.5 		.185
4.7 		.016
.4
K.S.MODEL 34
OR
K.S.MODEL
KST2000A
WITH DIE INDEX
COLOR:BLUE
 1000
MPDL2-156-T
 .157
4 		.413
10.5 		.925
23.5 		.413
10.5 		.185
4.7 		.016
.4 		1000
MPD2-195-T
 .197
5 		.335
8.5 		.835
21 		.413
10.5 		.185
4.7 		.016
.4 		1000
12-10
A.W.G.

4-6
mm2
MPD5-195-T
 .197
5 		.335
8.5 		.945
24 		.512
13 		.244
6.2 		.016
.4
K.S.MODEL 34
OR
K.S.MODEL
KST2000A
WITH DIE INDEX
COLOR:YELLOW
 500
