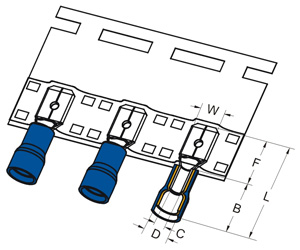

CONTINUAL TYPE TERMINALS

MAXIMUM ELECTRIC CURRENT:

A.W.G.	22	20	18	16	14	12	10
AMP.	3	4	7	10	15	20	24

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED

16-14A.W.G.: BLUE

12-10A.W.G.: YELLOW

DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL MATERIAL: BRASS

Product List (Total: 9 records)

Data Source Page NO.：P.385-35,

WIRE
RANGE
A.W.G.
mm²

ITEM NO.

NEMA TAB

DIMENSION inch(mm)

CRIMPING
TOOL

Q'TY
BOX

22-16
A.W.G.

0.5-1.5
mm²

MDD1-110(5)-T

.020X.110
(0.5X2.8)

.11
2.8

.256
6.5

.756
19.2

.413
10.5

.150
3.8

.02
.5

K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011

1000

MDD1-110(8)-T

.032X.110
(0.8X2.8)

.11
2.8

.256
6.5

.756
19.2

.413
10.5

.150
3.8

.016
.4

1000

MDD1-187(5)-T

.020X.187
(0.5X4.75)

.189
4.8

.256
6.5

.78
19.8

.413
10.5

.150
3.8

.02
.5

1000

MDD1-187(8)-T

.032X.187
(0.8X4.75)

.189
4.8

.264
6.7

.78
19.8

.413
10.5

.150
3.8

.016
.4

1000

MDD1-250-T

.032X.250
(0.8X6.35)

.25
6.35

.303
7.7

.858
21.8

.413
10.5

.150
3.8

.016
.4

1000

16-14
A.W.G.

1.5-2.5
mm²

MDD2-187(5)-T

.020X.187
(0.5X4.75)

.189
4.8

.256
6.5

.78
19.8

.413
10.5

.185
4.7

.02
.5

K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012

1000

MDD2-187(8)-T

.032X.187
(0.8X4.75)

.189
4.8

.264
6.7

.78
19.8

.413
10.5

.185
4.7

.016
.4

1000

MDD2-250-T

.032X.250
(0.8X6.35)

.25
6.35

.303
7.7

.858
21.8

.413
10.5

.185
4.7

.016
.4

1000

12-10
A.W.G.

4-6
mm²

MDD5-250-T

.032X.315
(0.8X6.35)

.25
6.35

.303
7.7

.945
24

.512
13

.244
6.2

.016
.4

K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF015

500

Data Source Page NO.：P.385-35,

Barrel Types

Terminals Type

Wire Range

Stud Size
