MAXIMUM ELECTRIC CURRENT:
| A.W.G. |
22 | 20 | 18 | 16 | 14 |
| AMP. |
3 | 4 | 7 | 18 | 30 |
MAXIMUM ELECTRICAL RATING: 105°C 300 VOLTS MAX.
INSULATION MATERIAL: NYLON
TERMINAL MATERIAL: BRASS
|
| Product List (Total: 2 records) |
Data Source Page NO.： P.385-29,
WIRE
RANGE
A.W.G.
mm2 |
ITEM NO. |
NEMA TAB |

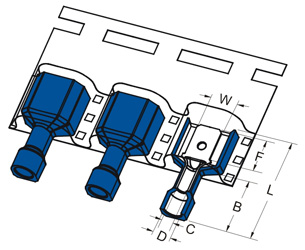

DIMENSION inch(mm) |
FIG |
CRIMPING
TOOL |
Q'TY
BOX |
|
W
|
F
|
L
|
E
|
D
|
T
|
22-18
A.W.G.
0.5-0.75
mm2
|
|
.032X.250
(0.8X6.35) |
.154
3.9
|
.276
7
|
.886
22.5
|
.433
11
|
.157
4.0
|
.016
.4
|
1 |
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD011 |
1000 |
16-14
A.W.G.
1.5-2.5
mm2
|
|
.032X.250
(0.8X6.35) |
.193
4.9
|
.276
7
|
.886
22.5
|
.433
11
|
.177
4.5
|
.016
.4
|
2 |
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD012 |
1000 |
|
|
|
|
