CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 201816141210
AMP. 4710152024

MAXIMUM ELECTRICAL RATING: 105°C 300 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: BRASS

Product List (Total: 6 records)
Data Source Page NO.：P.385-28,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. NEMA TAB DIMENSION inch(mm) FIG CRIMPING
TOOL		 Q'TY
BOX

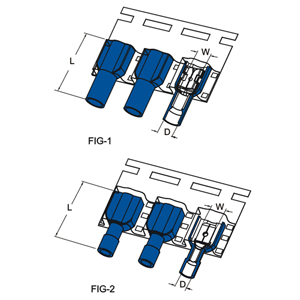

W F L B D T
22-16
A.W.G.

0.5-1.5
mm2
FDFNY1-250-T
 .032X.250
(0.8X6.35)		 .26
6.6 		.287
7.3 		.886
22.5 		.472
12 		.157
4.0 		.016
.4 		1
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD011
 1000
MDFNY1-250-T
 .032X.250
(0.8X6.35)		 .25
6.35 		.303
7.7 		.965
24.5 		.433
11 		.157
4.0 		.016
.4 		2 1000
16-14
A.W.G.

1.5-2.5
mm2
FDFNY2-250-T
 .032X.250
(0.8X6.35)		 .26
6.35 		.287
7.3 		.906
23 		.472
12 		.177
4.5 		.018
.45 		1
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD012
 1000
MDFNY2-250-T
 .032X.250
(0.8X6.35)		 .25
6.35 		.303
7.7 		.965
24.5 		.433
11 		.177
4.5 		.031
.8 		2 1000
12-10
A.W.G.

4-6
mm2
FDFNY5-250-T
 .032X.250
(0.8X6.35)		 .26
6.6 		.287
7.3 		.906
23 		.472
12 		.217
5.5 		.018
.45 		1
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPD015
 500
MDFNY5-250-T
 .032X.250
(0.8X6.35)		 .25
6.35 		.303
7.7 		1.024
26 		.512
13 		.217
5.5 		.031
.8 		2 500
