CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 9121718303550

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: COPPER

Product List (Total: 14 records)
Data Source Page NO.：P.385-18,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
BRAZED
SEAM		 BUTTED

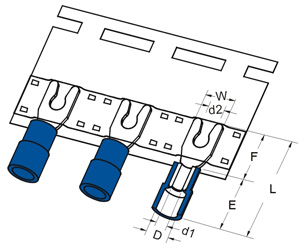

SEAM		 2 x d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
LSNYB1-3.7-T
LSNY1-3.7-T
 #6 .126
3.2		 .252
6.4 		.256
6.5 		.866
22 		.433
11 		.157
4.0 		.067
1.7 		.03
.75
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
 1000
LSNYBS1-4-T
LSNYS1-4-T
 #8 .146
3.7		 .283
7.2 		.256
6.5 		.866
22 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
LSNYBL1-4-T
LSNYL1-4-T
 #8 .146
3.7		 .319
8.1 		.256
6.5 		.866
22 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
LSNYBS1-5-T
LSNYS1-5-T
 #10 .146
3.7		 .319
8.1 		.256
6.5 		.866
22 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
LSNYBL1-5-T
LSNYL1-5-T
 #10 .169
4.3		 .374
9.5 		.256
6.5 		.866
22 		.433
11 		.157
4.0 		.067
1.7 		.03
.75 		1000
16-14
A.W.G.

1.5-2.5
mm2
LSNYB2-3.7-T
LSNY2-3.7-T
 #6 .146
3.7		 .236
6 		.256
6.5 		.866
22 		.433
11 		.177
4.5 		.091
2.3 		.031
.8
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
 1000
LSNYB2-4-T
LSNY2-4-T
 #8 .169
4.3		 .283
7.2 		.256
6.5 		.866
22 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
LSNYBL2-4-T
LSNYL2-4-T
 #8 .169
4.3		 .319
8.1 		.256
6.5 		.866
22 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
LSNYBS2-5-T
LSNYS2-5-T
 #10 .209
5.3		 .319
8.1 		.256
6.5 		.866
22 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
LSNYBL2-5-T
LSNYL2-5-T
 #10 .209
5.3		 .366
9.3 		.256
6.5 		.866
22 		.433
11 		.177
4.5 		.091
2.3 		.031
.8 		1000
12-10
A.W.G.

4-6
mm2
LSNYB5-3.7-T
LSNY5-3.7-T
 #6 .146
3.7		 .327
8.3 		.276
7 		.992
25.2 		.512
13 		.252
6.4 		.134
3.4 		.039
1
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF015
 500
LSNYB5-4-T
LSNY5-4-T
 #8 .169
4.3		 .327
8.3 		.276
7 		.992
25.2 		.512
13 		.252
6.4 		.134
3.4 		.039
1 		500
LSNYB5-5-T
LSNY5-5-T
 #10 .209
5.3		 .354
9 		.276
7 		.992
25.2 		.512
13 		.252
6.4 		.134
3.4 		.039
1 		500
LSNYB5-6-T
LSNY5-6-T
 1/4 .252
6.4		 .472
12 		.472
12 		1.24
31.5 		.512
13 		.252
6.4 		.134
3.4 		.039
1 		500
