CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 9121718303550

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
14-12A.W.G.: BLACK      12-10A.W.G.: YELLOW

TERMINAL MATERIAL: COPPER

Product List (Total: 34 records)
Data Source Page NO.：P.385-1,  P.385-2,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
BRAZED
SEAM		 BUTTED

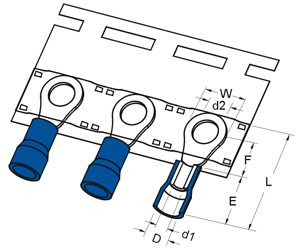

SEAM		 2 x d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
RVB1-3.2-T
RV1-3.2.-T
 #4 .126
3.2		 .217
5.5 		.197
5 		.689
17.5 		.394
10 		.157
4.0 		.067
1.7 		.03
.75
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF011
 1000
RVBS1-3.7-T
RVS1-3.7-T
 #6 .146
3.7		 .217
5.5 		.197
5 		.689
17.5 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVBM1-3.7-T
RVM1-3.7-T
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.764
19.4 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVBL1-3.7-T
RVL1-3.7-T
 #6 .146
3.7		 .315
8 		.276
7 		.819
20.8 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVBS1-4-T
RVS1-4-T
 #8 .169
4.3		 .26
6.6 		.248
6.3 		.764
19.4 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVBL1-4-T
RVL1-4-T
 #8 .169
4.3		 .315
8 		.276
7 		.819
20.8 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVB1-5-T
RV1-5-T
 #10 .209
5.3		 .315
8 		.276
7 		.819
20.8 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVBL1-5-T
RVL1-5-T
 #10 .209
5.3		 .457
11.6 		.433
11 		1.055
26.8 		.394
10.4 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVB1-6-T
RV1-6-T
 1/4 .252
6.4		 .457
11.6 		.433
11 		1.055
26.8 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVB1-8-T
RV1-8-T
 5/16 .331
8.4		 .457
11.6 		.433
11 		1.055
26.8 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
RVB1-10-T
RV1-10-T
 3/8 .413
10.5		 .535
13.6 		.547
13.9 		1.201
30.5 		.394
10 		.157
4.0 		.067
1.7 		.03
.75 		1000
16-14
A.W.G.

1.5-2.5
mm2
RVB2-3.2-T
RV2-3.2-T
 #4 .126
3.2		 .26
6.6 		.189
4.8 		.701
17.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8
K.S.MODEL
KM-70T
WITH DIE INDEX
NO.:TPF012
 1000
RVBS2-3.7-T
RVS2-3.7-T
 #6 .146
3.7		 .26
6.6 		.189
4.8 		.701
17.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBM2-3.7-T
RVM2-3.7-T
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.764
19.4 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBL2-3.7-T
RVL2-3.7-T
 #6 .146
3.7		 .335
8.5 		.291
7.4 		.858
21.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBS2-4-T
RVS2-4-T
 #8 .169
4.3		 .26
6.6 		.248
6.3 		.764
19.4 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBL2-4-T
RVL2-4-T
 #8 .169
4.3		 .335
8.5 		.307
7.8 		.858
21.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBS2-5-T
RVS2-5-T
 #10 .209
5.3		 .335
8.5 		.307
7.8 		.858
21.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVBL2-5-T
RVL2-5-T
 #10 .209
5.3		 .374
9.5 		.287
7.3 		.858
21.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVB2-6-T
RV2-6-T
 1/4 .252
6.4		 .472
12 		.433
11 		1.055
26.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVB2-8-T
RV2-8-T
 5/16 .331
8.4		 .472
12 		.433
11 		1.055
26.8 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
RVB2-10-T
RV2-10-T
 3/8 .413
10.5		 .535
13.6 		.547
13.9 		1.201
30.5 		.394
10 		.177
4.5 		.091
2.3 		.031
.8 		1000
