CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: COPPER

Product List (Total: 19 records)
Data Source Page NO.：P.383-5,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
BRAZED
SEAM		 BUTTED

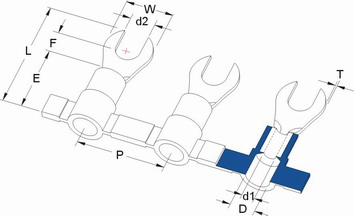

SEAM		 d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
ANYB1-3.2-PS
ANY1-3.2-PS
 #4 .126
3.2		 .217
5.5 		.197
5 		.693
17.6 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF011
 2500
ANYB1-3.7-PS
ANY1-3.7-PS
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.768
19.5 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
ANYB1-4-PS
ANY1-4-PS
 #8 .169
4.3		 .315
8 		.276
7 		.819
20.8 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
ANYB1-5-PS
ANY1-5-PS
 #10 .209
5.3		 .315
8 		.276
7 		.803
20.4 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
ANYB1-6-PS
ANY1-6-PS
 1/4 .252
6.4		 .457
11.6 		.433
11 		1.035
26.3 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
ANYB1-8-PS
ANY1-8-PS
 5/16 .331
8.4		 .457
11.6 		.433
11 		1
25.4 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
ANYB1-10-PS
ANY1-10-PS
 3/8 .413
10.5		 .591
15 		.539
13.7 		1.122
28.5 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75 		2500
16-14
A.W.G.

1.5-2.5
mm2
ANYB2-3.2-PS
ANY2-3.2-PS
 #4 .126
3.2		 .26
6.6 		.185
4.7 		.709
18 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF012
 2500
ANYB2-3.7-PS
ANY2-3.7-PS
 #6 .146
3.7		 .26
6.6 		.248
6.3 		.768
19.5 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
ANYB2-4-PS
ANY2-4-PS
 #8 .169
4.3		 .335
8.5 		.307
7.8 		.862
21.9 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
ANYB2-5-PS
ANY2-5-PS
 #10 .209
5.3		 .374
9.5 		.287
7.3 		.85
21.6 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
ANYB2-6-PS
ANY2-6-PS
 1/4 .252
6.4		 .472
12 		.433
11 		1.043
26.5 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
ANYB2-8-PS
ANY2-8-PS
 5/16 .331
8.4		 .472
12 		.433
11 		1.012
25.7 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
ANYB2-10-PS
ANY2-10-PS
 3/8 .413
10.5		 .591
15 		.539
13.7 		1.122
28.5 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8 		2500
12-10
A.W.G.

4-6
mm2
ANYB5-4-PS
ANY5-4-PS
 #8 .169
4.3		 .283
7.2 		.358
9.1 		1.02
25.9 		.512
13 		0.252
6.400 		.134
3.4 		.039
1
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF015
 2000
ANYB5-5-PS
ANY5-5-PS
 #10 .209
5.3		 .374
9.5 		.358
9.1 		1.008
25.6 		.512
13 		0.252
6.400 		.134
3.4 		.039
1 		2000
ANYB5-6-PS
ANY5-6-PS
 1/4 .252
6.4		 .472
12 		.413
10.5 		1.11
28.2 		.512
13 		0.252
6.400 		.134
3.4 		.039
1 		2000
ANYB5-8-PS
ANY5-8-PS
 5/16 .331
8.4		 .591
15 		.531
13.5 		1.276
32.4 		.512
13 		0.252
6.400 		.134
3.4 		.039
1 		2000
ANYB5-10-PS
ANY5-10-PS
 3/8 .413
10.5		 .591
15 		.531
13.5 		1.24
31.5 		.512
13 		0.252
6.400 		.134
3.4 		.039
1 		2000
