CONTINUAL TYPE TERMINALS


  CONTINUAL TYPE TERMINALS


　
　

MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 34710152024

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED      16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: COPPER

Product List (Total: 3 records)
Data Source Page NO.：P.383-4,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) CRIMPING
TOOL		 Q'TY
BOX
BRAZED
SEAM		 BUTTED

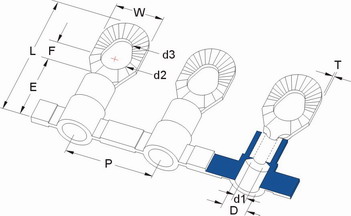

SEAM		 d3-d2 W F L E D d1 T
22-16
A.W.G.

0.5-1.5
mm2
MSRNYB1-3753-PS
MSRNY1-3753-PS
 #6
│
#8
│
#10 		.146
3.7
│
.169
4.3
│
.209
5.3 		.339
8.6 		.311
7.9 		.996
25.3 		.433
11 		0.157
4.000 		.067
1.7 		.03
.75
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF011
 2500
16-14
A.W.G.

1.5-.2.5
mm2
MSRNYB2-3753-PS
MSRNY2-3753-PS
 #6
│
#8
│
#10 		.146
3.7
│
.169
4.3
│
.209
5.3 		.339
8.6 		.311
7.9 		.996
25.3 		.433
11 		0.177
4.500 		.091
2.3 		.031
.8
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF012
 2500
12-10
A.W.G.

4-6
mm2
MSRNYB5-3753-PS
MSRNY5-3753-PS
 #6
│
#8
│
#10 		.146
3.7
│
.169
4.3
│
.209
5.3 		.39
9.9 		.35
8.9 		1.154
29.3 		.512
13 		0.252
6.400 		.134
3.4 		.039
1
K.S.MODEL
KM-70PS
WITH DIE INDEX
NO.:PSF015
 2000

Data Source Page NO.：P.383-4,

Barrel Types


Terminals Type


Wire Range


Stud Size
