MAXIMUM ELECTRIC CURRENT:

A.W.G.	22	20	18	16	14	12
AMP.	9	12	17	18	30	35

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-18A.W.G.: RED

18-14A.W.G.: BLUE

12A.W.G.: YELLOW

TERMINAL MATERIAL: PHOSPHOR BRONZE

Product List (Total: 4 records)

Data Source Page NO.：P.308-1,

WIRE
RANGE
A.W.G.
mm²

ITEM NO.

Suggested Mate
With Male Tab
(Thickness X Width)

DIMENSION inch(mm)

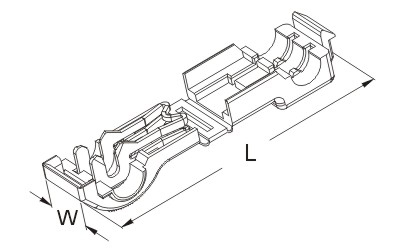

FIGURE

COLOR

Q'TY
BOX

W

L

22-18
A.W.G.

0.5-0.75
mm²

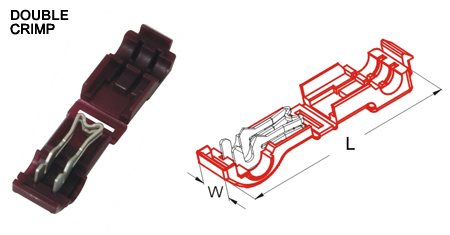

878006D

MDFNY1-250(0.032 X 0.250)

.366
9.3

1.583
40.2

RED

500

18-14
A.W.G.

0.75-2.5
mm²

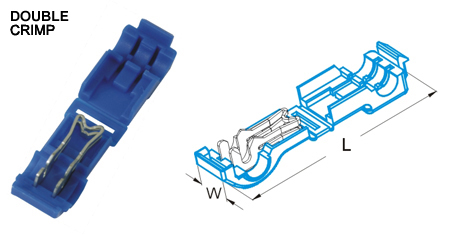

878106D

MDFNY2-250(0.032 X 0.250)

.366
9.3

1.583
40.2

BLUE

500

12
A.W.G.

4
mm²

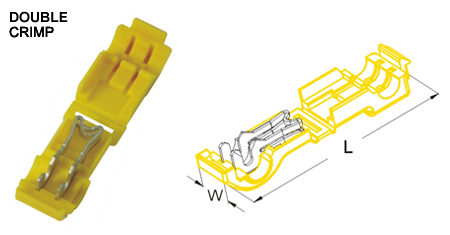

878206D

MDFNY5-250(0.032 X 0.250)

.366
9.3

1.583
40.2

YELLOW

500

Data Source Page NO.：P.308-1,
