中接管及其他類連接器


  中接管及其他類連接器





MAXIMUM ELECTRIC CURRENT:
A.W.G. 20181614
AMP. 12171830

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: 878104,878107,878109:P.P. 878008,878108:NYLON
INSULATION COLOR:
16-14A.W.G.: RED      18-14A.W.G.: BLUE
18-14A.W.G.: BLACK      20-18A.W.G.: YELLOW
18-14A.W.G.: BLUE
TERMINAL MATERIAL: BRASS



Product List (Total: 5 records)
Data Source Page NO.:P.309,

WIRE
RANGE
A.W.G.
mm2
ITEM NO. DIMENSION inch(mm) FIGURE COLOR Q'TY
BOX
W L
16-14
A.W.G.

1.5-2.5
mm2

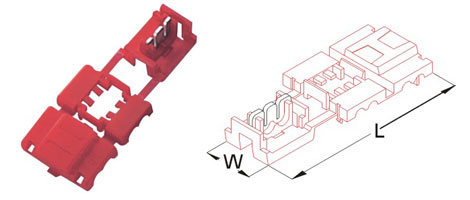

878104
.787
20
1.929
49
RED
/
BLUE
250
18-14
A.W.G.

0.75-2.5
mm2

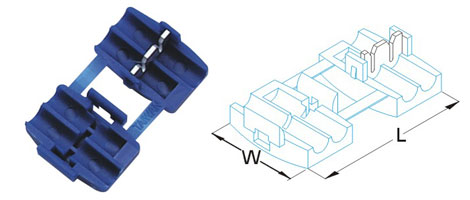

878107
.689
17.5
1.22
31
BLUE
/
BLACK
500
18-14
A.W.G.

0.75-2.5
mm2

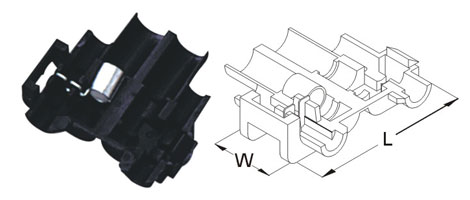

878109
1.102
28
1.22
31
BLACK
250
20-18
A.W.G.

0.5-0.75
mm2

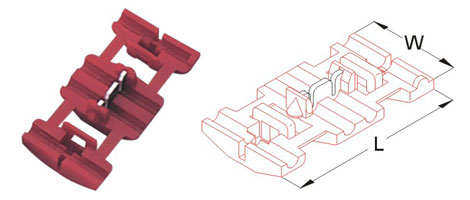

878008
1.378
35
1.339
34
RED
250
18-14
A.W.G.

0.75-2.5
mm2

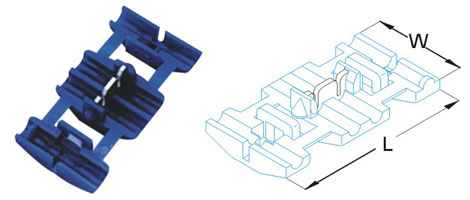

878108
1.378
35
1.339
34
BULE
250

Data Source Page NO.:P.309,
