MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 9121718303550

MAXIMUM ELECTRICAL RATING: 75°C 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
INSULATION COLOR:
22-16A.W.G.: 16-14A.W.G.:
12-10A.W.G.: 22-16A.W.G.: RED
16-14A.W.G.: BLUE      12-10A.W.G.: YELLOW

TERMINAL MATERIAL: COPPER

Product List (Total: 6 records)
Data Source Page NO.：P.310,

WIRE
RANGE
A.W.G.
mm2		 ITEM NO. STUD SIZE DIMENSION inch(mm) FIGURE Q'TY
BOX

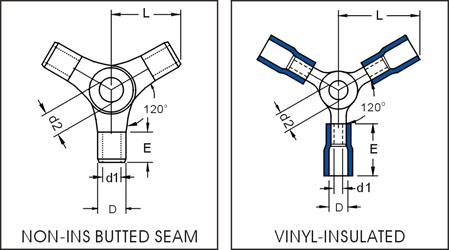

d2 L D E d1
22-16
A.W.G.

0.5-1.5
mm2
3WCN1
 #8 .157
4		 .472
12 		0.134
3.400 		.189
4.8 		.067
1.7 		1000
16-14
A.W.G.

1.5-2.5
mm2
3WCN2
 #8 .157
4		 .512
13 		0.161
4.100 		.189
4.8 		.091
2.3 		1000
12-10
A.W.G.

4-6
mm2
3WCN5
 #8 .157
4		 .591
15 		0.220
5.600 		.236
6 		.134
3.4 		500
22-16
A.W.G.

0.5-1.5
mm2
3WCV1
 #8 .157
4		 .669
17 		0.157
4.000 		.394
10 		.067
1.7 		500
16-14
A.W.G.

1.5-2.5
mm2
3WCV2
 #8 .157
4		 .709
18 		0.177
4.500 		.394
10 		.091
2.3 		500
12-10
A.W.G.

4-6
mm2
3WCV5
 #8 .157
4		 .886
22 		0.248
6.300 		.512
13 		.134
3.4 		250
