中接管及其他類連接器


  中接管及其他類連接器





MAXIMUM ELECTRIC CURRENT:
A.W.G. 22201816141210
AMP. 9121718303550

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX.
INSULATION MATERIAL: P.P
INSULATION COLOR:
22-18A.W.G.: RED      18-14A.W.G.: BLUE
18-14A.W.G.: 12-10A.W.G.: YELLOW

TERMINAL MATERIAL: BRASS



Product List (Total: 5 records)
Data Source Page NO.:P.307,

WIRE
RANGE
A.W.G.
mm2
ITEM NO. DIMENSION inch(mm) FIGURE COLOR Q'TY
BOX
W L
22-18
A.W.G.

0.5-0.75
mm2

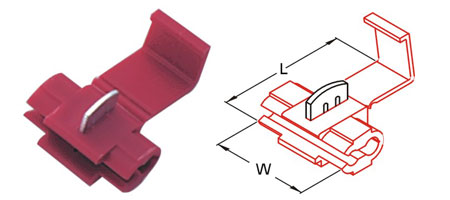

878100
.787
20
1.063
27
RED
500
878100N
.787
20
1.063
27
RED
500
18-14
A.W.G.

0.75-2.5
mm2

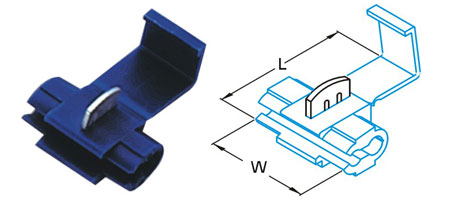

878101
.787
20
1.063
27
BLUE
500

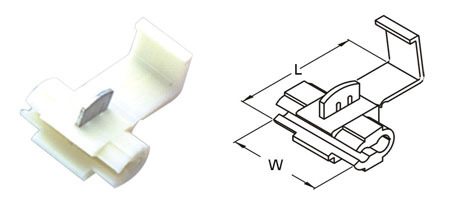

878101-WHITE
.787
20
1.063
27
WHITH
500
12-10
A.W.G.

4-6
mm2

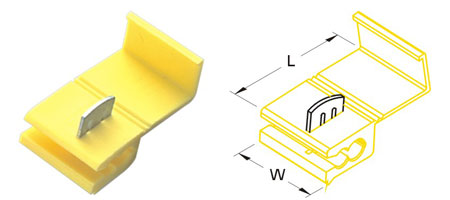

878201
.807
20.5
1.358
34.5
YELLOW
200

Data Source Page NO.:P.307,
