Product List (Total: 48 records)
Data Source Page NO.：P.295,  P.296,  P.297,

ITEM NO. NEMA TAB STUD SIZE DIMENSION inch(mm) FIGURE Q'TY
BOX
d2 W L
PC1L11002(5)LR
 .020X.110
0.5X2.8		 #2 2.4
 .181
4.6 		.28
7.1 		1000

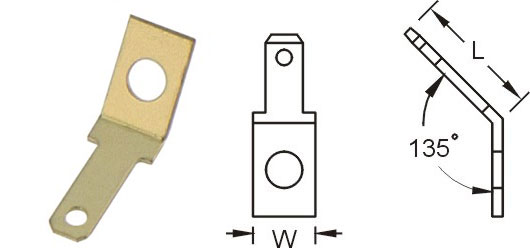

PC1L11002(8)LR
 .032X.110
0.8X28		 #2 2.4
 .181
4.6 		.28
7.1 		1000
PC1L18735LR
 .020X.187
0.5X4.75		 #6 3.5
 .299
7.6 		.61
15.5 		1000
PC1L18704LR
 .020X.187
0.5X4.75		 #8 4.3
 .299
7.6 		.61
15.5 		1000

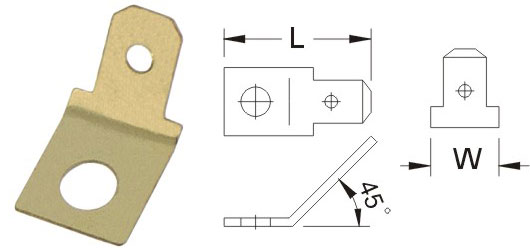

PC1L18705LR
 .020X.187
0.5X4.75		 #10 5.3
 .299
7.6 		.61
15.5 		1000
PC1L25035LR
 .032X.250
0.8X6.35		 #6 3.5
 .315
8 		.689
17.5 		1000
PC1L25004LR
 .032X.250
0.8X6.35		 #8 4.3
 .315
8 		.689
17.5 		1000

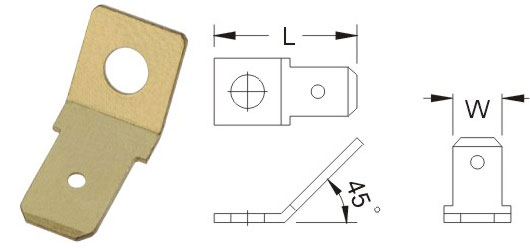

PC1L25005LR
 .032X.250
0.8X6.35		 #10 5.3
 .315
8 		.689
17.5 		1000

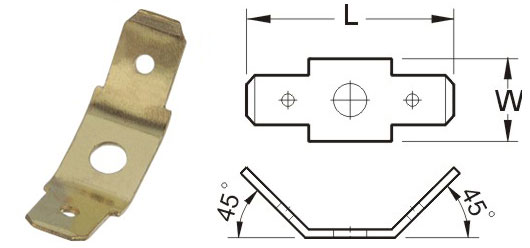

PC2L25035LR
 .032X.250
0.8X6.35		 #6 3.5
 .138
8.1 		1.043
26.5 		1000
PC2L25004LR
 .032X.250
0.8X6.35		 #8 4.3
 .138
8.1 		1.043
26.5 		1000
PC2L25005LR
 .032X.250
0.8X6.35		 #10 5.3
 .138
8.1 		1.043
26.5 		1000
PC3L11002(5)LR
 .020X.110
0.5X2.8		 #2 2.4
 .181
4.6 		.28
7.1 		1000

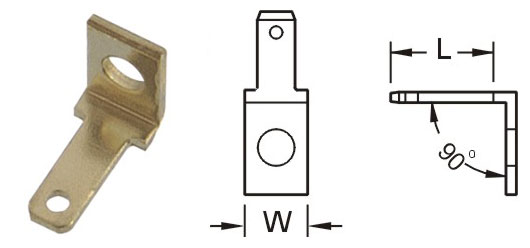

PC3L11002(8)LR
 .032X.187
0.5X2.8		 #2 2.4
 .181
4.6 		.28
7.1 		1000
PC3L18735LR
 .020X.187
0.5X4.75		 #6 3.5
 .3
7.6 		.429
10.9 		1000

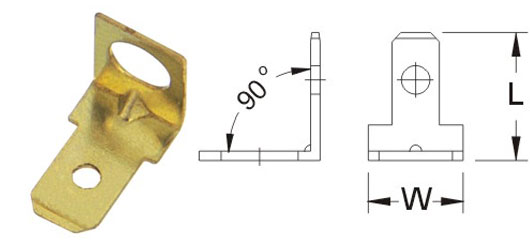

PC3L18704LR
 .020X.187
0.5X4.75		 #8 4.3
 .3
7.6 		.429
10.9 		1000
PC3L18705LR
 .020X.187
0.5X4.75		 #10 5.3
 .3
7.6 		.429
10.9 		1000
PC3L25035LR
 .032X.250
0.8X6.35		 #6 3.5
 .319
8.1 		.457
11.6 		1000
PC3L25004LR
 .032X.250
0.8X6.35		 #8 4.3
 .319
8.1 		.457
11.6 		1000

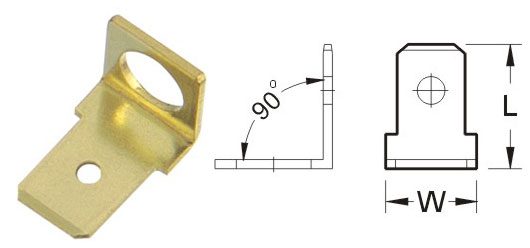

PC3L25005LR
 .032X.250
0.8X6.35		 #10 5.3
 .319
8.1 		.457
11.6 		1000

Data Source Page NO.：P.295,  P.296,  P.297,
